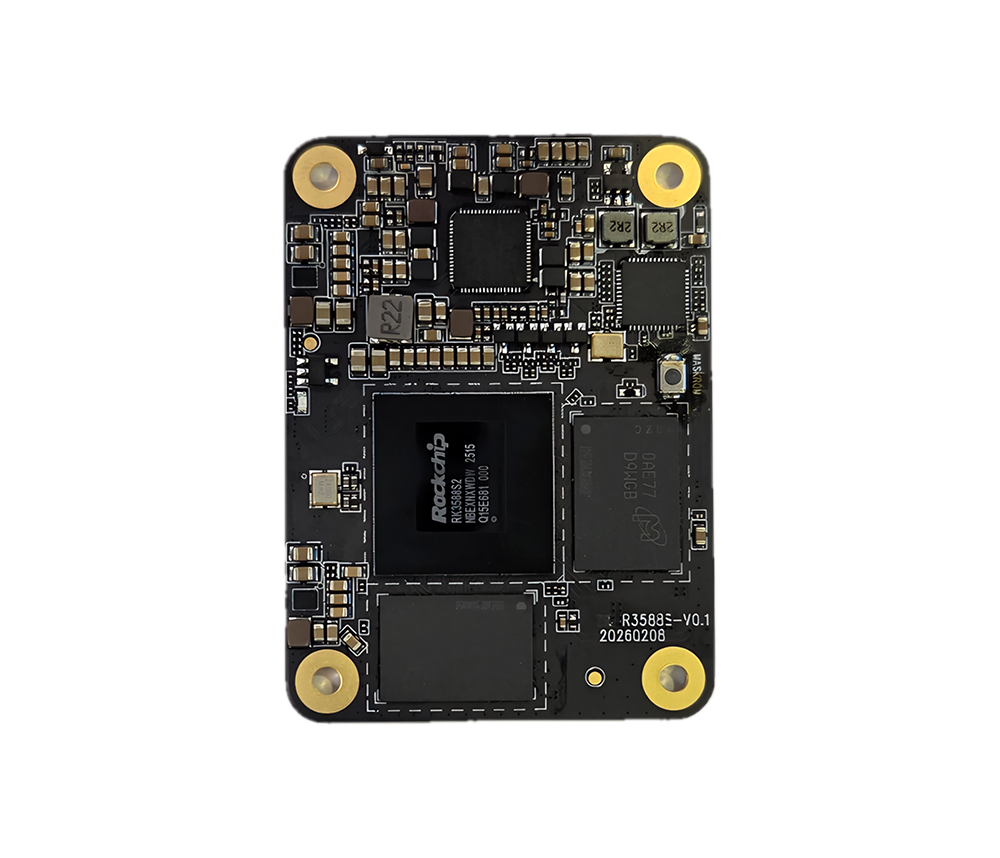

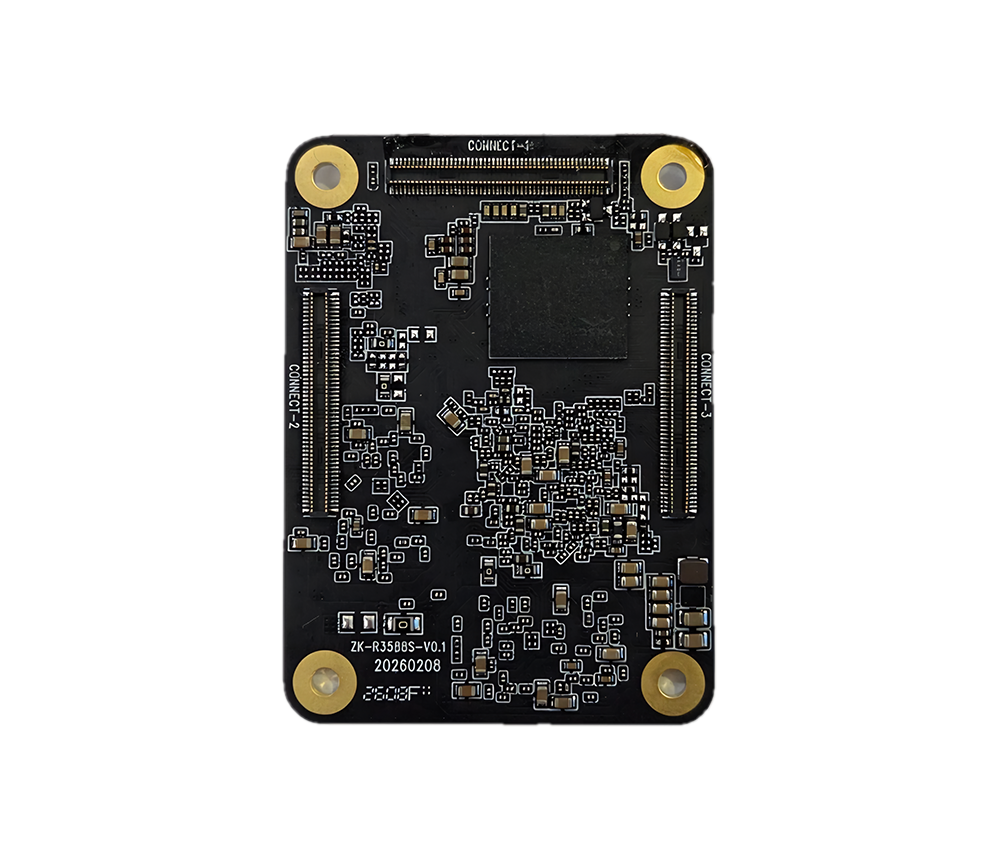

ZK-R3588S is a system-on-module (SoM) based on Rockchip's RK3588S2 system-on-chip (SoC). It integrates a central processing unit (CPU), graphics processing unit (GPU), neural processing unit (NPU), power management unit (PMU), LPDDR4 DRAM memory, and onboard eMMC storage, with a compact form factor of just 55mm x 40mm. The ZK-R3588S delivers a ready-to-use high-performance solution for a wide range of applications, accelerating customer product development.

Soc：Rockchip RK3588S2

CPU：Quad Cortex®- A76 @ 2.2~2.4GHz and a quad Cortex®- A55 @ 1.8GHz based on Arm® DynamIQ™ configuration

GPU：Arm Mali™ G610MC4 GPU - OpenGL® ES1.1, ES2.0, and ES3.2 - OpenCL® 1.1, 1.2 and 2.2 - Vulkan® 1.1 and 1.2 - Embedded high performance 2D image acceleration

module

NPU：NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration and computing power is up to 6TOPs

Memory：4GB LPDDR4 (depending on SKU)

Storage：Optional 32GB, up to 256GB Onboard eMMC Compatible with eMMC 5.1 Supports SDMMC interface for data storage and OS booting using SD cards
