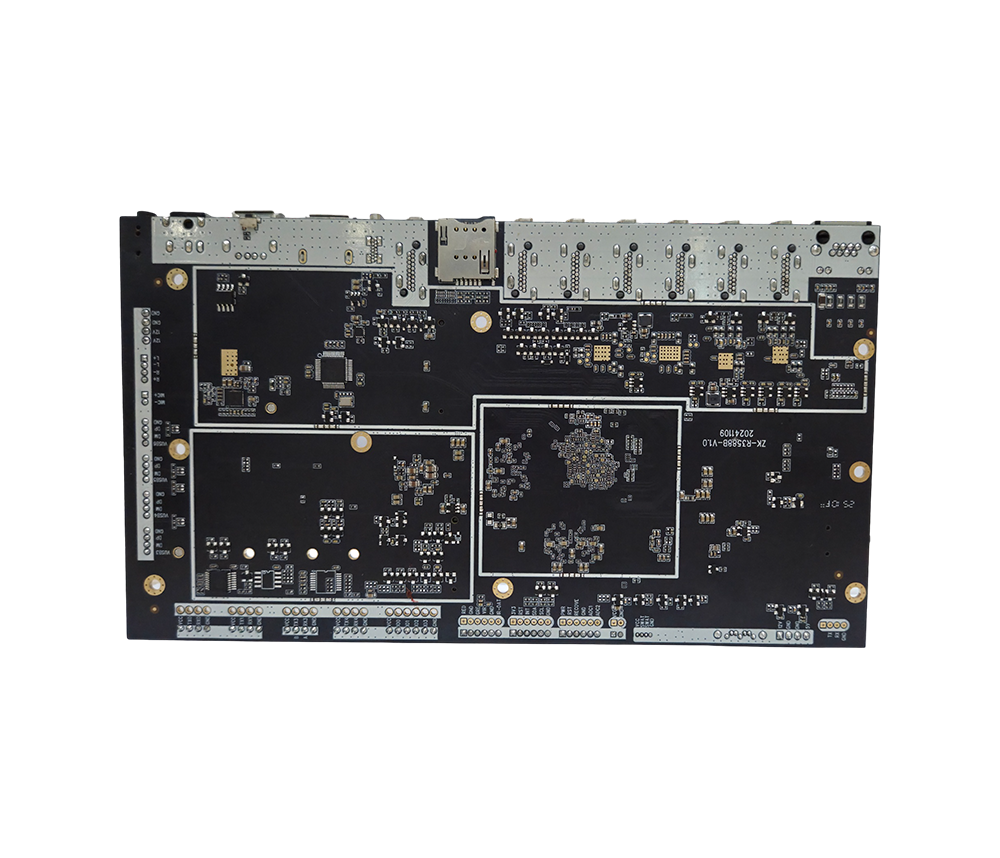

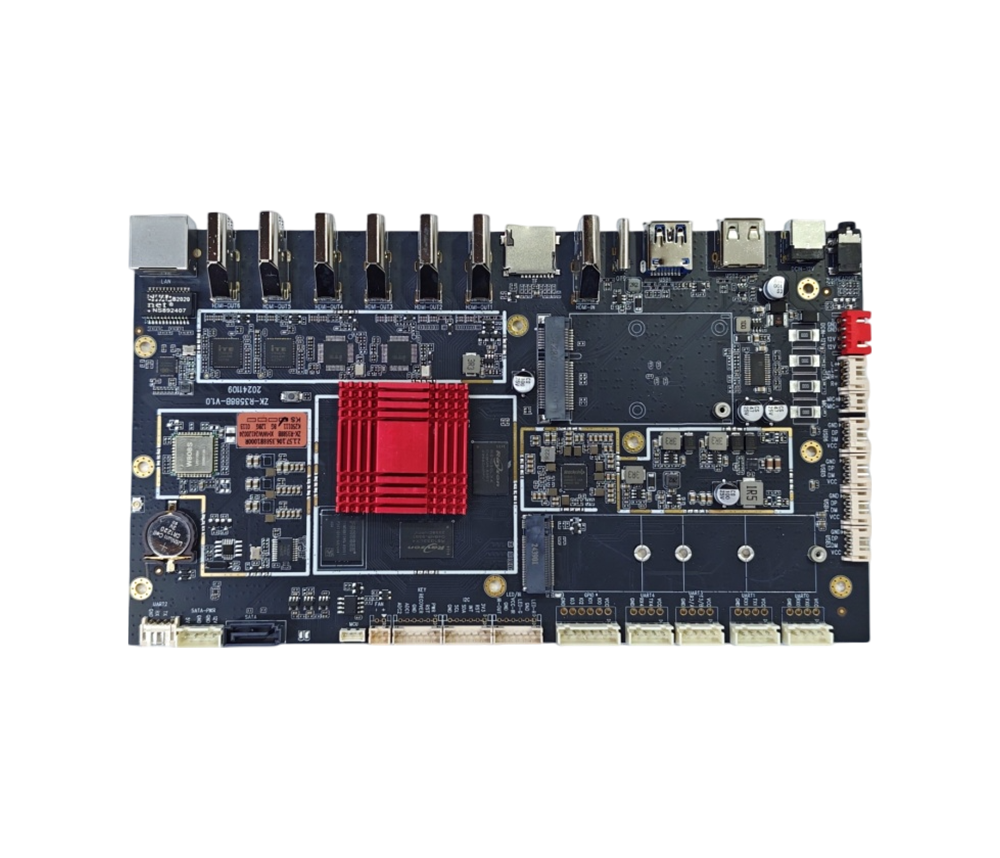

RK3588 Android intelligent motherboard adopts the Ruixin Micro RK3588 eight core 64 bit architecture, with four major cores Cortex-A76 and four small cores Cortex-A55, supporting the Google Android 12 system and decoding mainstream audio, video, formats, and images. Support 4K and H.264 hard decoding, multi-channel video output and input, embedded 3D GPU makes RK3588 fully compatible with OpenGL ES 1.1/2.0/3.1/3.2, OpenCL 1.1, 1.2, 2.0, and Vulkan 1.1, 1.2. The special 2D hardware engine will maximize display performance and provide very smooth operation, with built-in 6TOPS computing power, a three core architecture, and support for int4/int8/int16/FP16/BF16/TF32 hybrid operation. It has stronger performance, faster speed, and richer interfaces.

Size: 170*120mm, up to 11mm, suitable for smart industrial control terminal equipment

Display interface: The board supports a variety of display output interfaces such as LVDS (6/8 bit), HDMI, EDP, MIPI, and V-BY-ONE

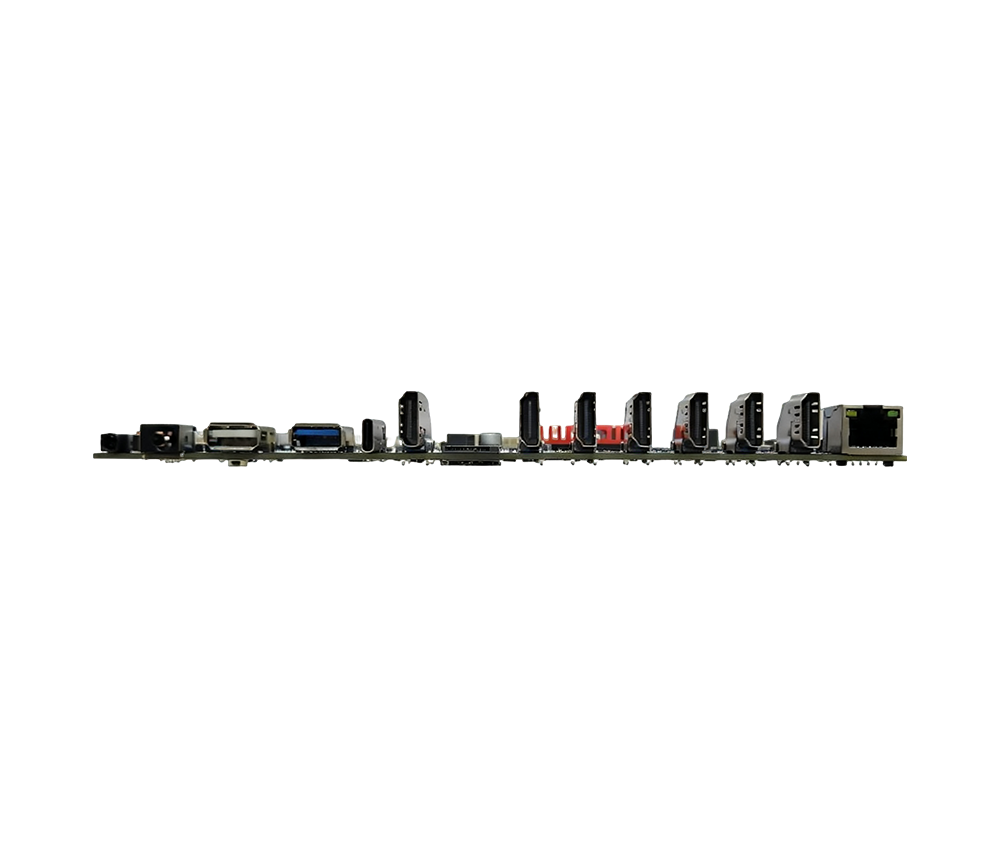

Rich expansion interfaces: 1 TYPE-C OTG, 6 USB2.0, 2 USB3.0 interfaces, 4 TTL serial ports (optional RS232*4/485*1), 4 GPIO interfaces, 1 I2C Interfaces, etc., can meet the requirements of various peripherals on the market

Multiple network interfaces: Gigabit Ethernet, WIFI2.4G (WiFi5/WiFi6 optional), 4G/5G network, Bluetooth

High definition: supports 4K hard decoding playback, supports horizontal and vertical screen playback, video split screen, rolling subtitles, scheduled power on and off, USB data import and other functions

Supports deep learning, posture analysis, and other AI application scenarios
