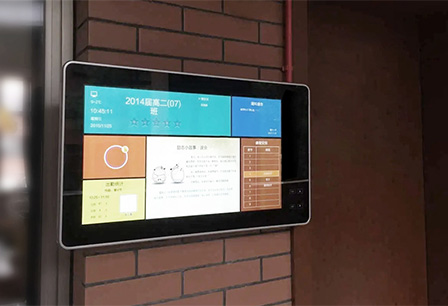

RK3399 Android smart board uses Rockchip RK3399 (dual Cortex-A72 large core 1.8GHz + four Cortex-A53 small core 1.4GHz) six-core 64-bit CPU, equipped with Android7.1 system. It uses Mai-T860MP4 GPU and supports 4K and H.265 hard decoding. Multiple video outputs and inputs, stronger performance, faster speed, and richer interfaces. Supports single and double 6/8-bit LVDS display output, and supports eDP display output. Supports HDMI-4K output (HDMI-IN optional) and 4K video playback. Supports 24GWI (5G optional), supports Bluetooth function, infrared remote control, supports high-speed USB3.0, gravity sensor, GPS, supports serial port expansion, IO port expansion interface, and is widely used in advertising machines, interactive all-in-one machines, and security , industrial control and other intelligent control fields. Due to its hardware platform and Android intelligent characteristics, it can be used on the smart terminal motherboard when human-computer interaction or network device interaction is required.

Motherboard size: 166.2mm*107mm, the thinnest can be 11mm, suitable for smart terminal equipment

Multi-channel display interface: The board supports LVDS (6/8 bit), EDP, HDMI, MIPI multiple display output interfaces, plus HDMI input interface

Rich expansion interfaces: 7 USB 2.0, 2 USB 3.0, 4 TTL serial ports (optional RS232*4/485*1), 4 GPIO interfaces, 1 I2C interface, etc., which can meet various needs on the market Peripheral requirements

Multiple network interfaces: Ethernet, Wifi2.4G (WiFi5 optional), Bluetooth, 4G

High definition: supports 4K hard decoding playback, supports horizontal and vertical screen playback, video split screen, rolling subtitles, scheduled power on and off, USB data import and other functions
